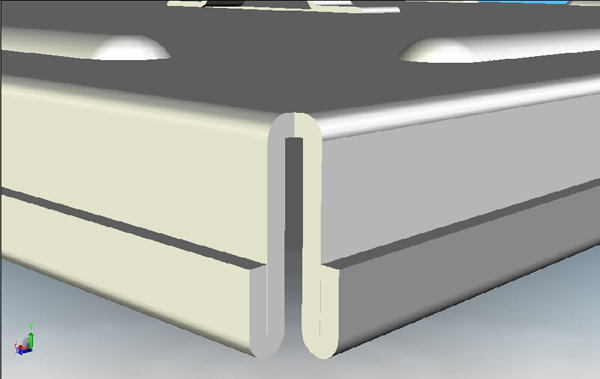

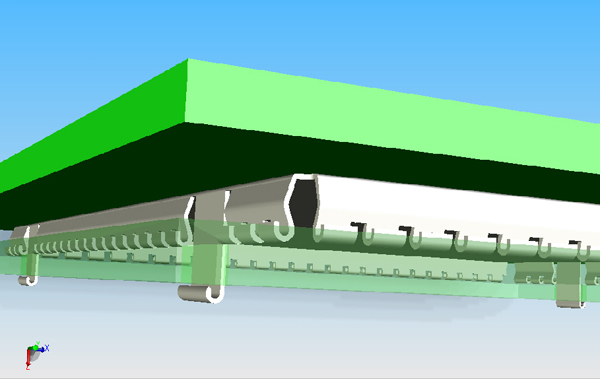

1. Depending on the design, gap will be able to be reserve among COVER, Casing
and Support.
2. COVER may be designed to single unit type or many types
3. No limitation of clip point, assigns according to the customer

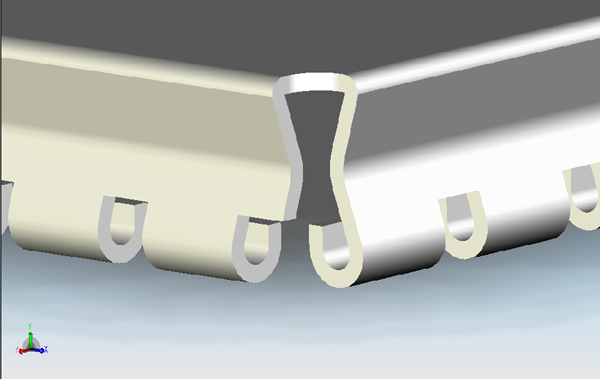

4. PAD area must be greater than the center of contact point of COVER.(A+0.3mm)
5. Depend on the customer design, the contact foot point may have four or more
kind of forms to be available (can be folded toward in or out)
6. May use welding, mylar, touched soldering and other ways to fixed.
7. More than two clip points is recommended.
8. Clip point, suggested minimum size : 0.5mm H: 0.5mm
9. Above are general layout emphasis, please pass the drawing of your design to
us for further discussion when there comes a special design.
